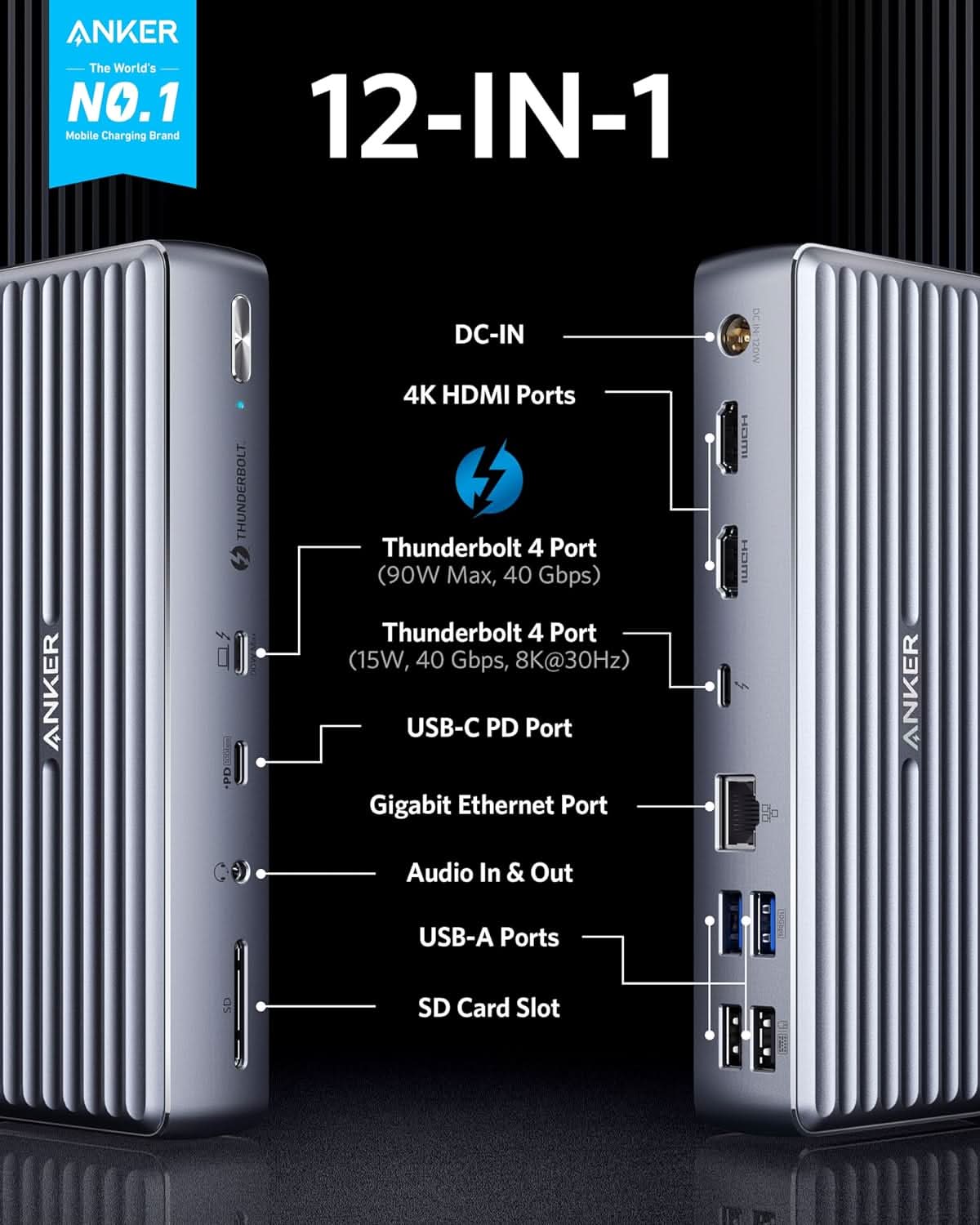

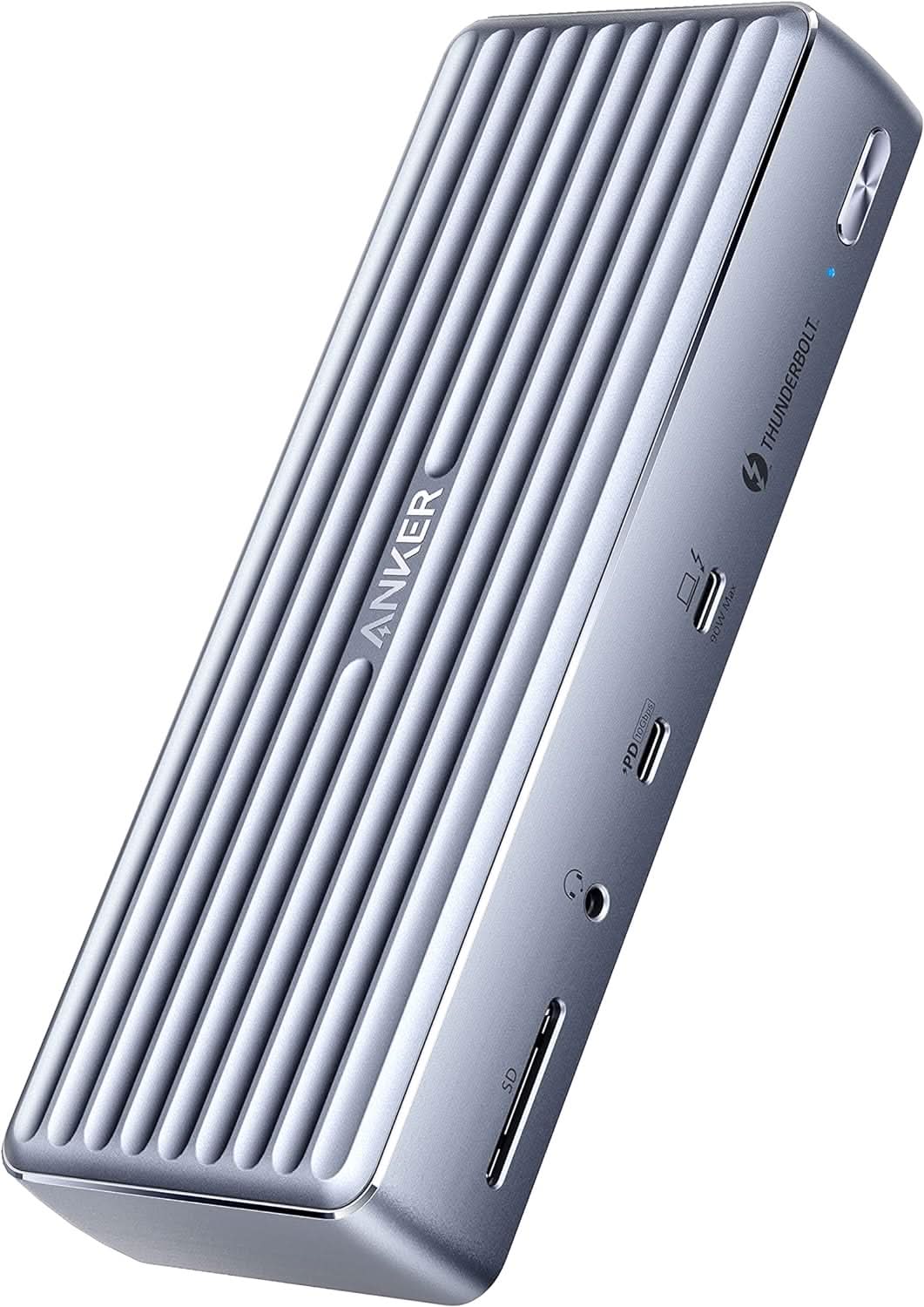

Anker 777 Thunderbolt Docking Station (Apex, 12-in-1, Thunderbolt 4)

Compatibility Information

• Compatible with Windows 10 laptops equipped with a Thunderbolt 4 port (Intel Evo Platform), and non-M1 MacBooks running macOS 11 (Big Sur) or later.
• Not compatible with Linux or ChromeOS laptops, Thunderbolt 3 Windows laptops, M1/M2 MacBooks, or M1 Max/Pro MacBooks running macOS 10.16 or earlier.

Note:

• If you cannot detect the dock after updating to macOS Ventura, please follow these steps: Privacy & Security > Allow accessories to connect.

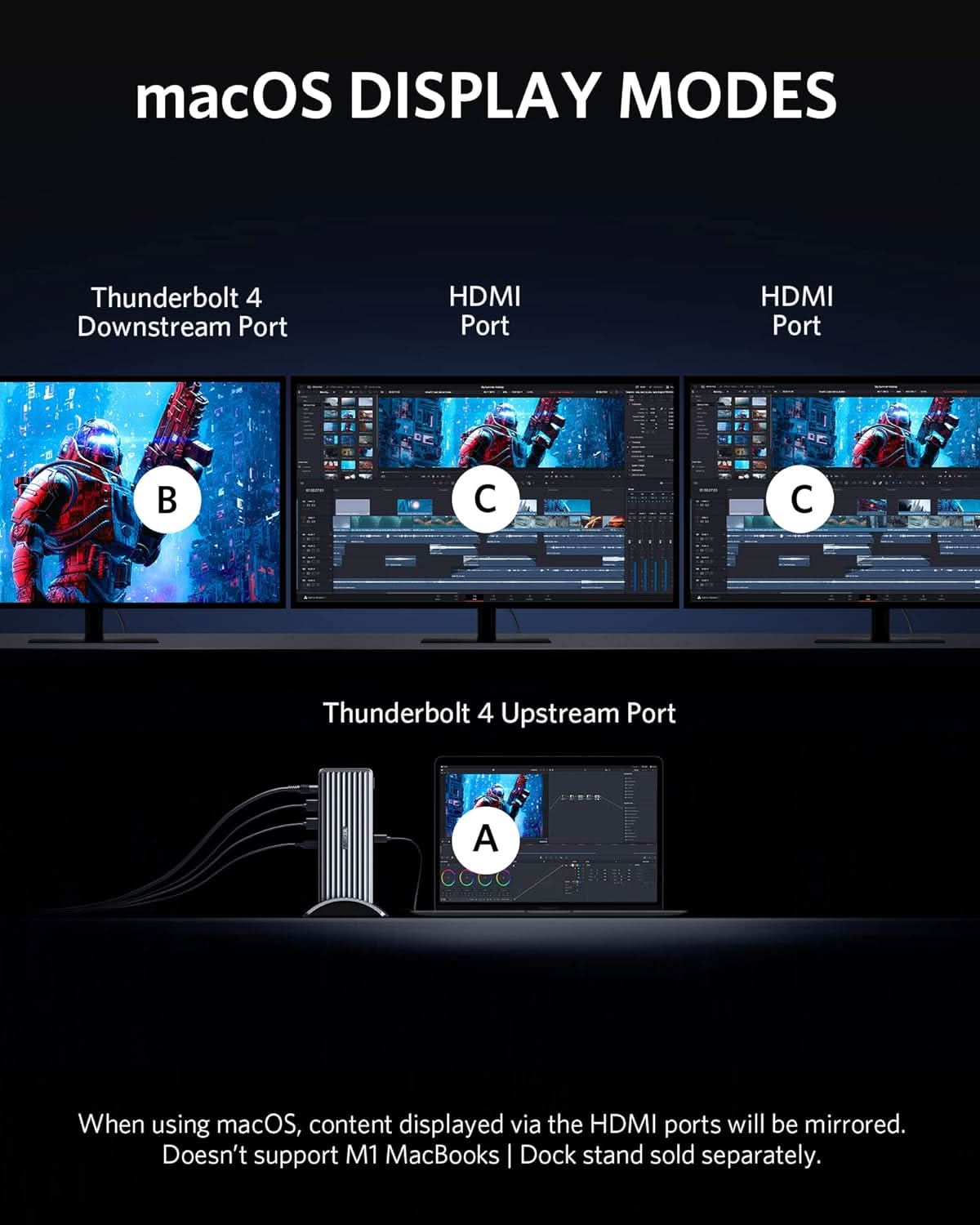

macOS doesn't support Multi-Stream Transport (MST), and as such, all content displayed via the HDMI ports will be mirrored.

• The table above shows the maximum supported resolutions. Actual resolution varies based on the specifications of the host device.
• MacBooks with the Apple M1/M2 chip only support single monitor display.
• Intel based MacBooks, Apple M1 Max/Pro MacBooks, and Apple M2 Max/Pro MacBooks support dual monitor display with extended desktop when using a USB-C to HDMI video adapter (not included). Connecting to two monitors using the two HDMI ports will only mirror your desktop.

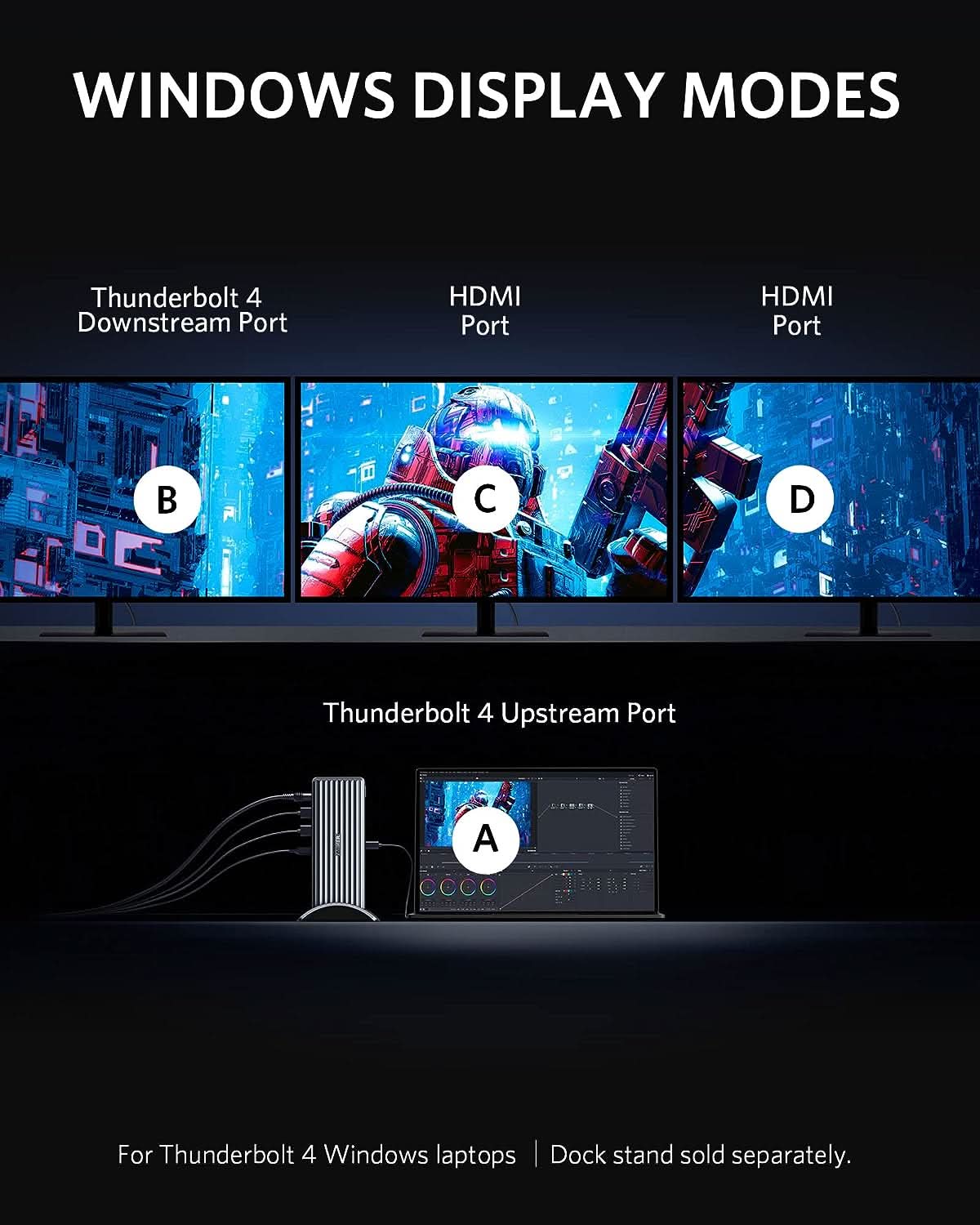

• This dock can support up to three simultaneous monitor connections. The number of monitors that can be used with your laptop depends upon the power of your laptop and its graphics card capabilities. Not all laptops have the graphics capabilities to support multiple monitors and you may encounter display issues when attempting to use multiple displays.

Determining Your DisplayPort (DP) Version: The version of DP on your laptop, computer, or tablet directly determines the actual resolution when connecting to external monitors using the Anker hub. There are three simple ways to find out which version of DP your device has.

1. Ask your device manufacturer or seller directly.

2. If you're using a Windows device, you can tell which version of DP you have by checking your CPU generation.

• DP version 1.2 if your CPU is Intel generation 10 or earlier.
• DP version 1.4 if your CPU is Intel generation 11 or later.
• DP version 1.4 if you're using a workstation laptop with an NVIDIA GPU.

Don't know how to find your CPU generation? Simply go to This PC (or My Computer) > Properties and look for the number (shown in bold and underlined below):

Processer: Intel(R) Core i7-8850H CPU @ 2.60GHz 2.59Ghz

3. If you're using a MacBook, iMac, or iPad, you can find your DP version from the list below:

DP 1.4: iPad Pro 11-inch, iPad Pro 12.9-inch (3rd generation and later), MacBook Pro (16-inch, 2019), MacBook Pro (15-inch, 2017 and later), MacBook Pro (13-inch, 4 Thunderbolt 3 ports, 2020), MacBook Air (2020), MacBook Air (13-inch, M1, 2020), MacBook Pro (13-inch, M1, 2020), MacBook Pro (14-inch, 2021), MacBook Pro (16-inch, 2021), iMac (Retina 5K, 27-inch, 2017 and later), iMac (Retina 4K, 21.5-inch, 2017 and later), and iMac Pro (2017 and later)

DP 1.2: iPad Air (4th generation), MacBook Air (2018 and later), MacBook Pro (13-inch, 2016 and later), MacBook Pro (15-inch, 2016), iMac (non-Retina, 21.5‑inch, 2017), and Mac mini (2018)

• 90W Max Charging: Use a Thunderbolt 4 cable to keep your laptop powered up while you’re working.
• The USB-A data ports do not support charging.

FAQ

Q1: Can this dock support fast charging for my devices?

A1: This dock supports up to 90W of charging via the Thunderbolt 4 upstream port on the front of the dock (indicated with a computer icon). This means that if your laptop comes with a 100W or above power adapter, the charging speed will be slower than you’re used to. The USB-C Power Delivery port (indicated by “PD”) supports up to 20W fast charging for your phone. The Thunderbolt 4 downstream port supports 15W charging for smaller devices.

The USB-A data ports on the back of the dock do not support charging.

Q2: Will this dock work with any laptop? What kind of cable should I use to connect the dock to my laptop?

A2:No, this dock only works with Windows laptops equipped with a Thunderbolt 4 port (Intel Evo Platform), and non-M1 MacBooks running macOS 11 (Big Sur) or later. It is recommended to use a Thunderbolt 4.0 cable.

Q3: How to deal with screen drop, black screen, or screen flickering issues when connecting to an external monitor?

A3: After the dock has just been connected to the external monitor, it's normal for there to be some degree of flickering. It should go away in a few seconds. If this problem persists, try lowering the resolution.

If you experience any screen issues after waking up your laptop, restart the dock. If your laptop or the docking station has not been shut down for a long time and you’re experiencing screen issues, please restart the dock.

Q4: Sometimes the dock doesn’t automatically reconnect after I wake up or restart my laptop. What should I do?

A4: This situation doesn’t happen very often, but if you are having this problem, try disconnecting and reconnecting the Thunderbolt 4 cable.

Q5: Why does the dock feel warm?

A5: When charging or transferring data at high speed, the dock’s temperature may increase. Don't worry, this is within the normal limits of the dock’s operation. To avoid excessive heat, make sure not to place any objects on top of the dock or to cover the dock with anything.
